Wireless microforce sensor

ULabs
sens-at-005
Sensorium

Precision micro force sensor designed for measuring small forces using strain gauge technology.

Contact for pricing
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Specification

icon plus

Working Principle

The micro force sensor uses resistance strain gauge technology. The sensor forms a beam structure. When the sensor is subjected to force, the beam bends, the resistance strain gauge deforms, and its resistance changes accordingly. The output voltage of the bridge circuit composed of the resistance strain gauge changes. This signal is very weak and must be amplified and processed accordingly to obtain the final required output signal.

Measurement Capabilities

Range: -2 N to +2 N

Resolution: 0.01 N

Structure and Function

  1. The sensor terminal comes with a 1.8-inch color LCD screen.
  2. Equipped with 5 function buttons. The operation interface is simple and convenient.
  3. Supports high-speed USB data channel, which enables high speed transmission of the datalogger.
  4. Supports wireless communication with experimental terminals.
  5. Has a built-in removable battery with a large capacity.
  6. Designed with a hidden buckle sensor interface to support combined experiments with other sensors.
  7. Includes mounting holes for attachment to iron stands for integration with traditional lab equipm11ent for experiments.
  8. Supports the latest operating systems, such as iOS, Android, Windows, etc.

Powered by AI

icon plus

Built‑in AI functions open new possibilities for data analysis, automated processing of results, and the creation of interactive experiments.

Additional info

icon plus

Typical Applications

The Micro force sensor is a universal force sensor that can be easily operated by hand through the finger hole, and can also be installed on accessories such as a mechanical trolley for experimental measurements. It applies to Newton's Second and Third Laws, Hooke's Law, experiments demonstrating apparent weight increase and weightlessness, the momentum theorem, Ampère's force measurement, and others.

Caution

This product is suitable for educational use only and is not suitable for industrial, medical, research, or commercial applications.

2Usage Tips

  1. The micro force sensor can measure b2oth tension and pressure. The software stipulates that tension readings are positive values and pressure readings are negative values.
  2. During the measurement process, attention should be paid to keeping the force direction of the sensor perpendicular to the end face of the sensor. Inclination of the force direction, such as pulling or pressing the sensor diagonally, will cause inaccurate measurement results.
  3. Perform software zero adjustment on the micro force sensor before use. Do not operate the sensor beyond its specified range. After use, the force sensor should be protected from prolonged stress to maintain the instrument's integrity.
  4. Since the micro force sensor hook itself has a small weight, the readings will vary when the hook is moved up and down. Please zero the force sensor through the software before use.
How long is the MIKKO Course?
Is the MIKKO Course good for new teachers
Is the MIKKO Course good for new teachers
How long is the MIKKO Course?
Ask something?
More information

What it is

Wireless sensor with built‑in AI features that unlock new possibilities for data analysis and make experiments highly interactive.

Who it’s for

Ideal for school laboratories, university courses, and STEM projects.

Benefits

  • Fully wireless connection — mobility and ease of use.
  • Wide range of experiments in physiology, ecology, biochemistry, and cell biology.
  • The sensor is designed for both teachers and students, providing a complete learning cycle: from experiment setup to real‑time analysis and interpretation of results for K-12 curriculum.

Innovation

Built‑in AI functions open new possibilities for data analysis, automated processing of results, and the creation of interactive experiments.

More information

What it is

Wireless sensor with built‑in AI features that unlock new possibilities for data analysis and make experiments highly interactive.

Who it’s for

Ideal for school laboratories, university courses, and STEM projects.

Benefits

  • Fully wireless connection — mobility and ease of use.
  • Wide range of experiments in physiology, ecology, biochemistry, and cell biology.
  • The sensor is designed for both teachers and students, providing a complete learning cycle: from experiment setup to real‑time analysis and interpretation of results for K-12 curriculum.

Innovation

Built‑in AI functions open new possibilities for data analysis, automated processing of results, and the creation of interactive experiments.

Related products
view all

What our clients are saying about us.

ULabs
Sensorium
sens-at-013
Wireless humidity sensor
Humidity sensor designed for measuring relative humidity in air or gas for environmental studies.
Explore Products
icon arrow right
ULabs
Sensorium
sens-at-038

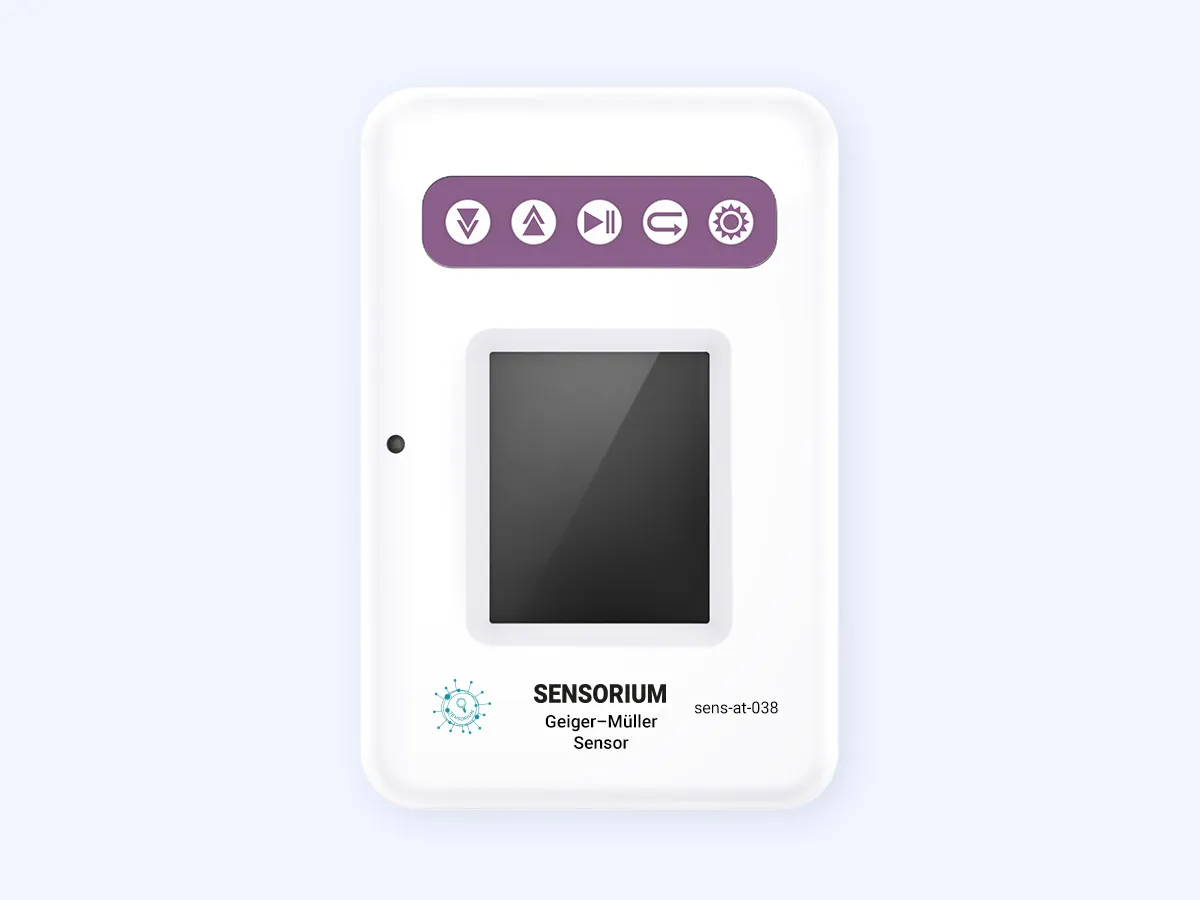

Wireless Geiger-Müller Sensor
Geiger-Müller counter designed for detecting ionizing radiation including alpha, beta, and gamma rays.
Explore Products
icon arrow right
ULabs
Didactic Kits
pcb-ulabs-11
Chemistry Teacher’s set with AI agent
Designed for the K-12 curriculum, this ULABS Chemistry Teacher Lab Kit supports demos and labs in inorganic and organic chemistry. Explore fundamental chemical phenomena, processes, plus physical and chemical properties of matter.
Explore Products
icon arrow right
ULabs
Sensorium
sens-at-028

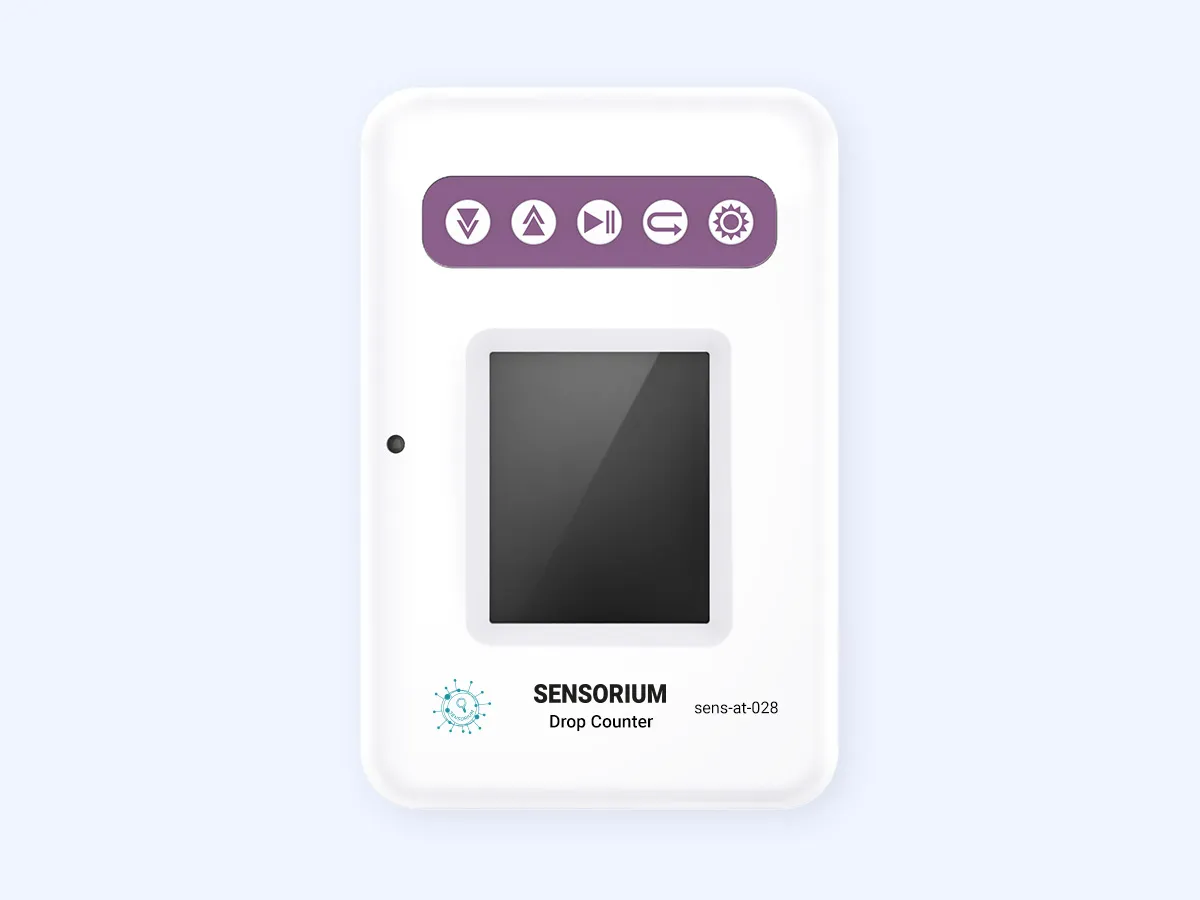

Wireless Droup counter
