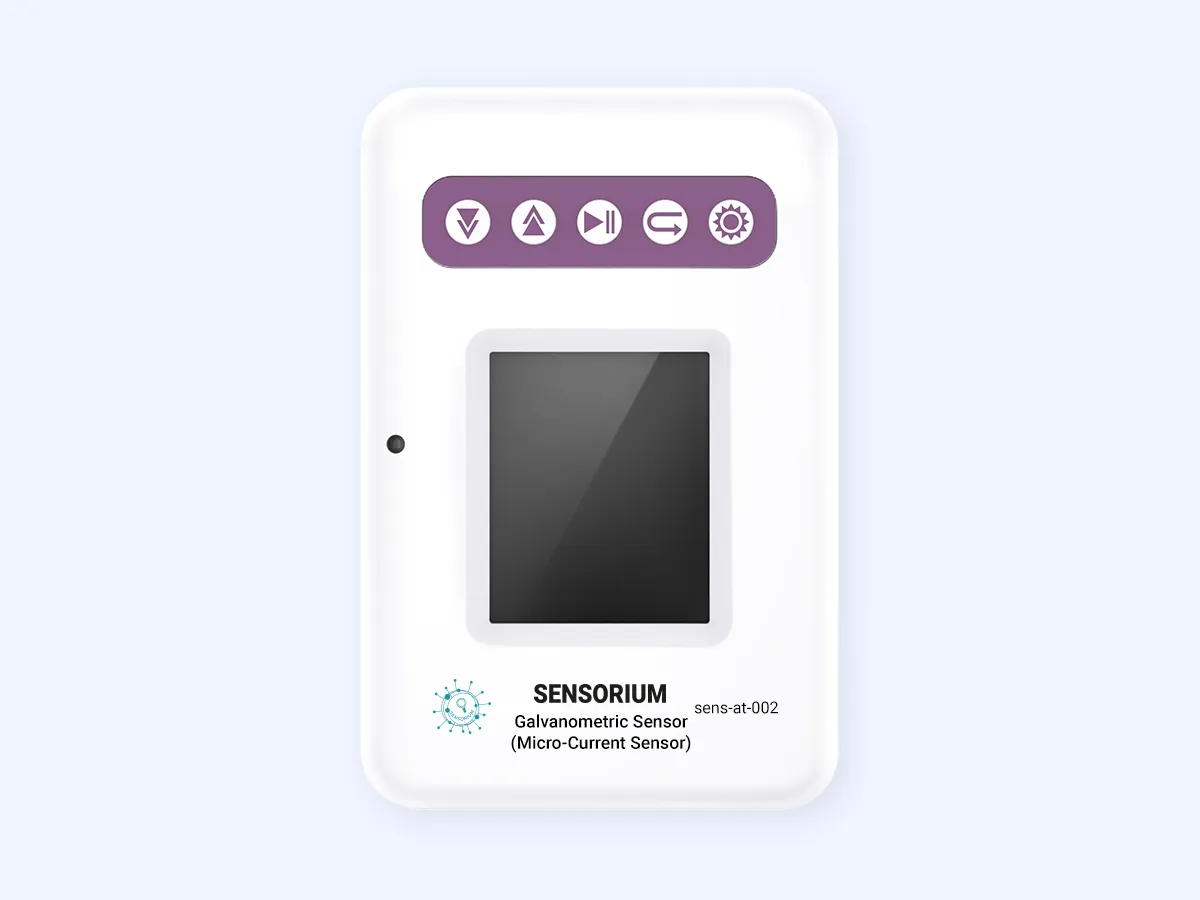

Wireless galvanometric sensor (Wireless Micro-current Sensor)
10 reviews

Wireless galvanometric sensor (Wireless Micro-current Sensor)

ULabs
sens-at-002
Sensorium

Sensitive micro-current (galvanometric) sensor designed for detecting weak currents in induction experiments.

Contact for pricing
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Specification

icon plus

Working Principle

A sensitive sampling resistor is used to collect the current flowing through the sensor, converting it into a voltage signal, which is then amplified to output a standard signal.

Measurement Capabilities

Range: -30 μA to +30 μA

Resolution: 0.01 μA

Structure and Functions

  1. Equipped with a 1.8-inch color LCD screen.
  2. Configured with 5 functional buttons for a simple and user-friendly interface.
  3. Supports high-speed USB data transfer for communication with data acquisition devices.
  4. Supports wireless communication with experimental terminals.
  5. Built-in large-capacity removable battery.
  6. Features a sensor interface with snap fasteners, compatible with standard sensors for combined experiments.
  7. Includes mounting positions for attachment to iron stands to integrate with traditional equipment.
  8. The sensor is compatible with common operating systems such as iOS, Android, and Windows.

Powered by AI

icon plus

Built‑in AI functions open new possibilities for data analysis, automated processing of results, and the creation of interactive experiments.

Additional info

icon plus

Typical Applications

The galvanometric sensor, also called a micro-current sensor, is designed for measuring weak currents and is primarily intended for qualitative observation experiments. Its typical applications include detecting minute induced currents and studying the conditions for generating induced currents, such as investigating electromagnetic induction phenomena, Lenz's law, and induced currents under weak magnetic flux changes.

Note

This product is suitable for educational use only and is not intended for industrial, medical, research, or commercial applications.

Usage Tips

  1. Since the micro-current sensor may be affected by external interference during operation, it is recommended to zero the sensor using the software before use.
  2. When using the sensor, connect it in series within the circuit. If the measured current enters through the red wire and exits through the black wire, the displayed value will be positive; if connected in reverse, the displayed value will be negative.
  3. Due to the small measurement range of the micro-current sensor, avoid connecting it to active circuits, as exceeding the range may damage the sensor.
How long is the MIKKO Course?
Is the MIKKO Course good for new teachers
Is the MIKKO Course good for new teachers
How long is the MIKKO Course?
Ask something?
More information

What it is

Wireless sensor with built‑in AI features that unlock new possibilities for data analysis and make experiments highly interactive.

Who it’s for

Ideal for school laboratories, university courses, and STEM projects.

Benefits

  • Fully wireless connection — mobility and ease of use.
  • Wide range of experiments in physiology, ecology, biochemistry, and cell biology.
  • The sensor is designed for both teachers and students, providing a complete learning cycle: from experiment setup to real‑time analysis and interpretation of results for K-12 curriculum.

Innovation

Built‑in AI functions open new possibilities for data analysis, automated processing of results, and the creation of interactive experiments.

More information

What it is

Wireless sensor with built‑in AI features that unlock new possibilities for data analysis and make experiments highly interactive.

Who it’s for

Ideal for school laboratories, university courses, and STEM projects.

Benefits

  • Fully wireless connection — mobility and ease of use.
  • Wide range of experiments in physiology, ecology, biochemistry, and cell biology.
  • The sensor is designed for both teachers and students, providing a complete learning cycle: from experiment setup to real‑time analysis and interpretation of results for K-12 curriculum.

Innovation

Built‑in AI functions open new possibilities for data analysis, automated processing of results, and the creation of interactive experiments.

Related products
view all

What our clients are saying about us.

ULabs
Sensorium
sens-at-001
Wireless current sensor
High-quality current sensor designed for school laboratories to measure electrical current.
Explore Products
icon arrow right
ULabs
Sensorium
sens-at-005
Wireless microforce sensor
Precision micro force sensor designed for measuring small forces using strain gauge technology.
Explore Products
icon arrow right
ULabs
Didactic Kits
pcb-ulabs-10
Mechanics Dynamic System set with AI agent
Designed for K-12, this ULABS Dynamics System for kinematics & dynamics features an adjustable aluminum track and carts. Explore Newton's laws, collisions, and inclined plane efficiency with low-friction, precise measurements.
Explore Products
icon arrow right
ULabs
Sensorium
sens-at-015

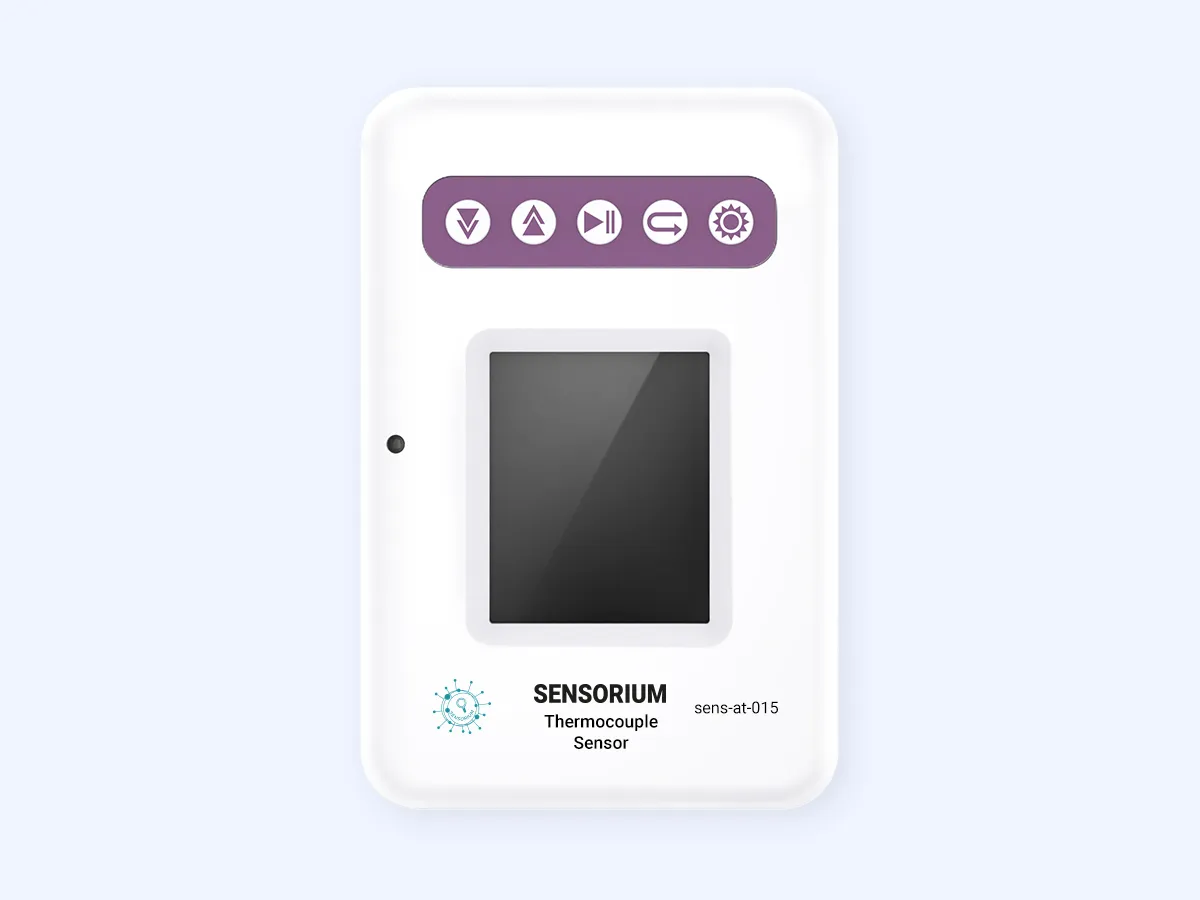

Wireless thermocouple sensor
