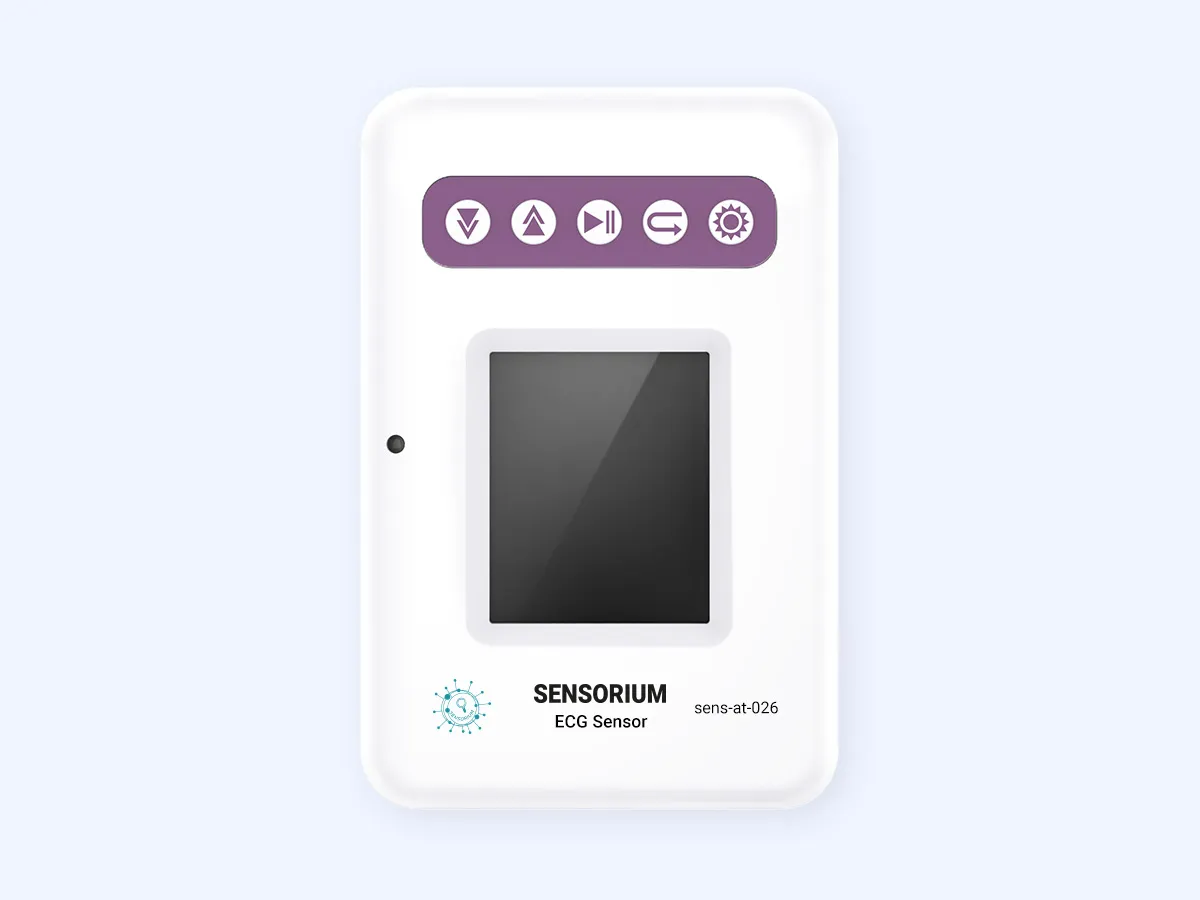

Wireless ECG sensor

ULabs
sens-at-026
Sensorium

Electrocardiogram (ECG) sensor designed for measuring cardiac electrical activity and voltage waveforms.

Contact for pricing
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Specification

icon plus

Working Principle

The electrocardiogram, also known as a cardiac electrical activity diagram or ECG, represents the electrical signals generated by the heart. The electrocardiogram sensor is connected to your body to measure cardiac electrical activity, and the software displays this activity in graphical form.

Measurement Capabilities

Range: 0–5 V

Resolution: 0.1 mV

Sampling Rate: 50–200 Hz

Structure and Features

  1. Equipped with a 1.8-inch color LCD screen.
  2. Configured with five functional buttons for a simple and user-friendly interface.
  3. Supports high-speed USB data transfer for rapid communication with data acquisition devices.
  4. Enables wireless communication with experimental terminals.
  5. Features a built-in high-capacity removable battery.
  6. Includes a snap-on sensor interface for compatibility with standard sensors in combined experiments.
  7. Provides fixed mounting points for integration with traditional equipment on iron stands.
  8. The sensor is compatible with iOS, Android, and Windows operating systems.

Powered by AI

icon plus

Built‑in AI functions open new possibilities for data analysis, automated processing of results, and the creation of interactive experiments.

Additional info

icon plus

Typical Applications

The electrocardiogram sensor records the heart's voltage waveform caused by heart contractions.

Experimental Application:

  • Measure electrocardiogram data while sitting, standing, before and after exercise, laughing, and before and after consuming caffeinated beverages.

Examples:

  1. Monitor the electrocardiogram of a person in a resting state.
  2. Study the significance of P, Q, R, S, and T waves.
  3. Monitor the electrocardiogram after moderate exercise.
  4. Investigate the electrocardiogram following mild stimulation.

Note

This product is intended solely for educational use and is not suitable for industrial, medical, research, or commercial applications.

Usage Tips

  1. Clean the area of skin where the electrocardiogram electrode will be attached.
  2. Place the electrocardiogram electrode on the cleaned skin (use water, soapy water, or an alcohol swab for cleaning).
  3. Position the electrodes as follows:
  • Black ground electrode on the right forearm.
  • White negative electrode on the right foot.
  • Red positive electrode on the left forearm.
  1. Metal or magnetic materials on the body may interfere with or distort the electrocardiogram signal.
  2. Once the electrocardiogram leads are connected to the electrodes, the sensor is ready to acquire data.

(Note: The baseline of the electrocardiogram waveform may shift during sensor data collection due to movement of large muscle groups. For optimal results, remain still while collecting data.)
