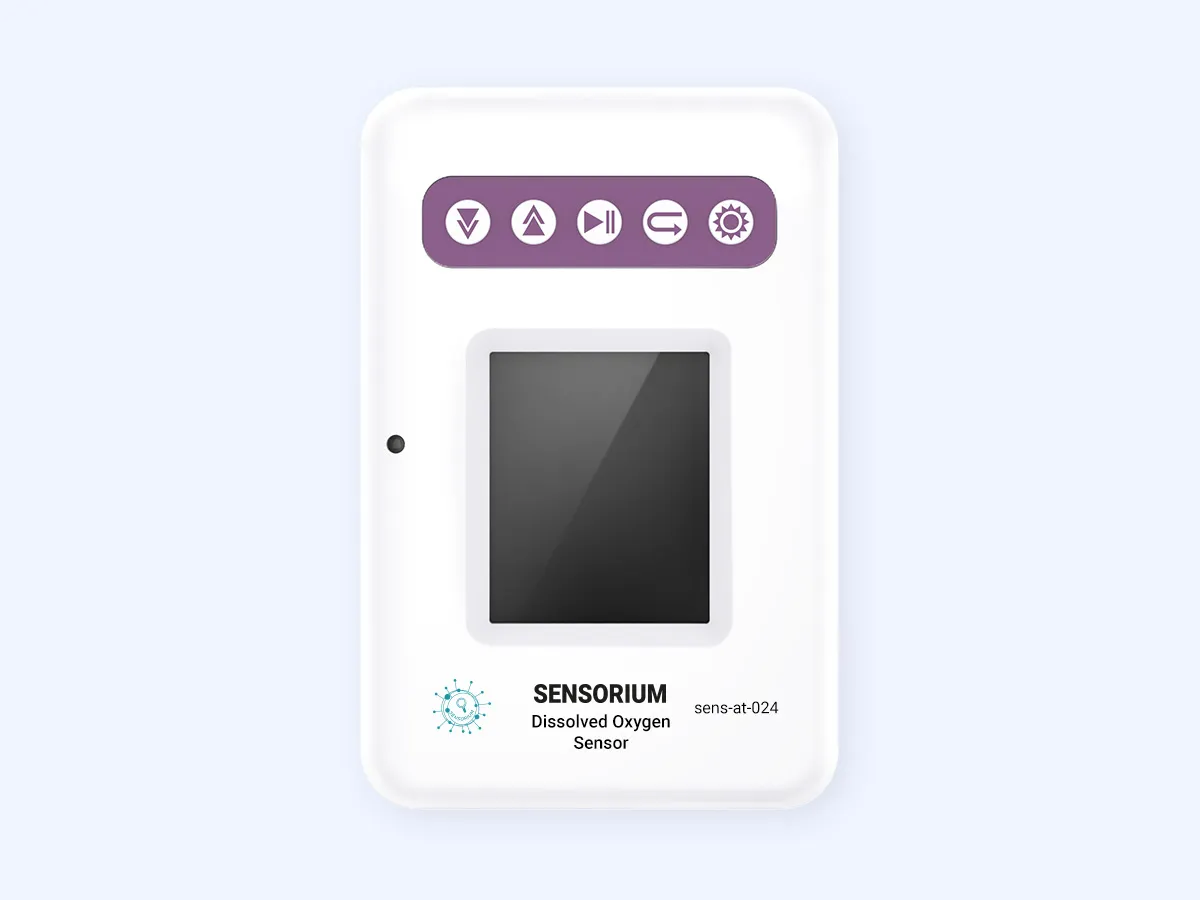

Wireless Dissolved Oxygen Sensor(Wireless oxygen level sensor(DO+gas)
10 reviews

Wireless Dissolved Oxygen Sensor(Wireless oxygen level sensor(DO+gas)

ULabs
sens-at-024
Sensorium

Dissolved oxygen sensor designed for monitoring water quality and aquatic ecosystems.

Contact for pricing
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Specification

icon plus

Working Principle

The dissolved oxygen electrode consists of a silver anode and a gold cathode, with a potential difference of +800 mV between the anode and cathode. The cathode and anode are isolated by a semipermeable membrane in the electrolyte solution, which only allows oxygen to pass through. Oxygen is reduced at the cathode through the following reaction, creating a point near the cathode where the oxygen pressure is zero. Consequently, the current flowing between the two electrodes is converted into a voltage signal, and temperature-induced errors are compensated to calibrate the output. The measured results are then transmitted to the data acquisition system with appropriate corrections.

Measurement Capabilities

Range: 0–20 mg/L

Resolution: 0.1 mg/L

Structure and Features

  1. Equipped with a 1.8-inch color LCD screen.
  2. Configured with five functional buttons for simple and convenient operation.
  3. Supports high-speed USB data transfer for rapid communication with data acquisition systems.
  4. Enables wireless communication with experimental terminals.
  5. Features a built-in large-capacity removable battery.
  6. Includes a sensor interface with a snap fastener, compatible with standard sensors for combined experiments.
  7. Provides a fixed mounting position for integration with traditional equipment on an iron stand.
  8. The sensor supports iOS, Android, and Windows operating systems.

Powered by AI

icon plus

Built‑in AI functions open new possibilities for data analysis, automated processing of results, and the creation of interactive experiments.

Additional info

icon plus

Typical Applications

This sensor can measure the concentration of dissolved oxygen in water samples in both field and laboratory settings. Dissolved oxygen is a critical indicator of water quality, and this sensor can be used for various types of measurements:

  1. Monitoring dissolved oxygen in aquariums containing aquatic plants and animals.
  2. Tracking changes in dissolved oxygen concentration caused by photosynthesis and respiration of aquatic plants.
  3. Conducting fixed-point monitoring of rivers or lakes to assess the impact of different species of flora and fauna on water quality.
  4. Determining the relationship between dissolved oxygen concentration and temperature in water samples.

Note

This product is suitable for educational purposes only and is not intended for industrial, medical, research, or commercial applications.

Usage Tips

  1. Allow a 10-minute warm-up period before taking readings.
  2. Regularly calibrate the sensor and replace the electrolyte solution, with the frequency depending on usage and required measurement accuracy.
  3. The semipermeable membrane is fragile and prone to breakage; handle with care to avoid puncturing the membrane cup.
  4. Gently stir the sample solution. Note: It is crucial to keep the sensor in slight motion within the sample solution to ensure water flows over the sensor tip during measurement. When measuring dissolved oxygen, the sensor extracts and dissociates oxygen from the water. If the sensor remains in stagnant water, the readings will gradually decrease.
  5. When not in use (for short periods), immerse the probe in clean water to prevent the electrolyte in the probe chamber from drying out.
  6. After experiments, store the dissolved oxygen sensor probe in a protective sleeve filled with water.
  7. Avoid contact with oils or other organic substances. Using the sensor in non-aqueous solutions or those containing oils, grease, or coatings will shorten its lifespan.
  8. The dissolved oxygen sensor is designed to measure dissolved oxygen content in liquids.
  9. Before using the dissolved oxygen sensor, ensure the sample solution is uniformly mixed; otherwise, the measurements will be inaccurate.

The probe of the dissolved oxygen sensor has a service life of two years. Replacement probes can be ordered from our company.

  1. Response time: 95 % of readings within 60 seconds.
  2. Temperature compensation range: 5–35 °C.
How long is the MIKKO Course?
Is the MIKKO Course good for new teachers
Is the MIKKO Course good for new teachers
How long is the MIKKO Course?
Ask something?
More information

What it is

Wireless sensor with built‑in AI features that unlock new possibilities for data analysis and make experiments highly interactive.

Who it’s for

Ideal for school laboratories, university courses, and STEM projects.

Benefits

  • Fully wireless connection — mobility and ease of use.
  • Wide range of experiments in physiology, ecology, biochemistry, and cell biology.
  • The sensor is designed for both teachers and students, providing a complete learning cycle: from experiment setup to real‑time analysis and interpretation of results for K-12 curriculum.

Innovation

Built‑in AI functions open new possibilities for data analysis, automated processing of results, and the creation of interactive experiments.

More information

What it is

Wireless sensor with built‑in AI features that unlock new possibilities for data analysis and make experiments highly interactive.

Who it’s for

Ideal for school laboratories, university courses, and STEM projects.

Benefits

  • Fully wireless connection — mobility and ease of use.
  • Wide range of experiments in physiology, ecology, biochemistry, and cell biology.
  • The sensor is designed for both teachers and students, providing a complete learning cycle: from experiment setup to real‑time analysis and interpretation of results for K-12 curriculum.

Innovation

Built‑in AI functions open new possibilities for data analysis, automated processing of results, and the creation of interactive experiments.

Related products
view all

What our clients are saying about us.

ULabs
Sensorium
sens-at-008
Wireless magnetic field sensor
Magnetic induction sensor using Hall effect technology to measure magnetic flux density and direction.
Explore Products
icon arrow right
ULabs
Sensorium
sens-at-003

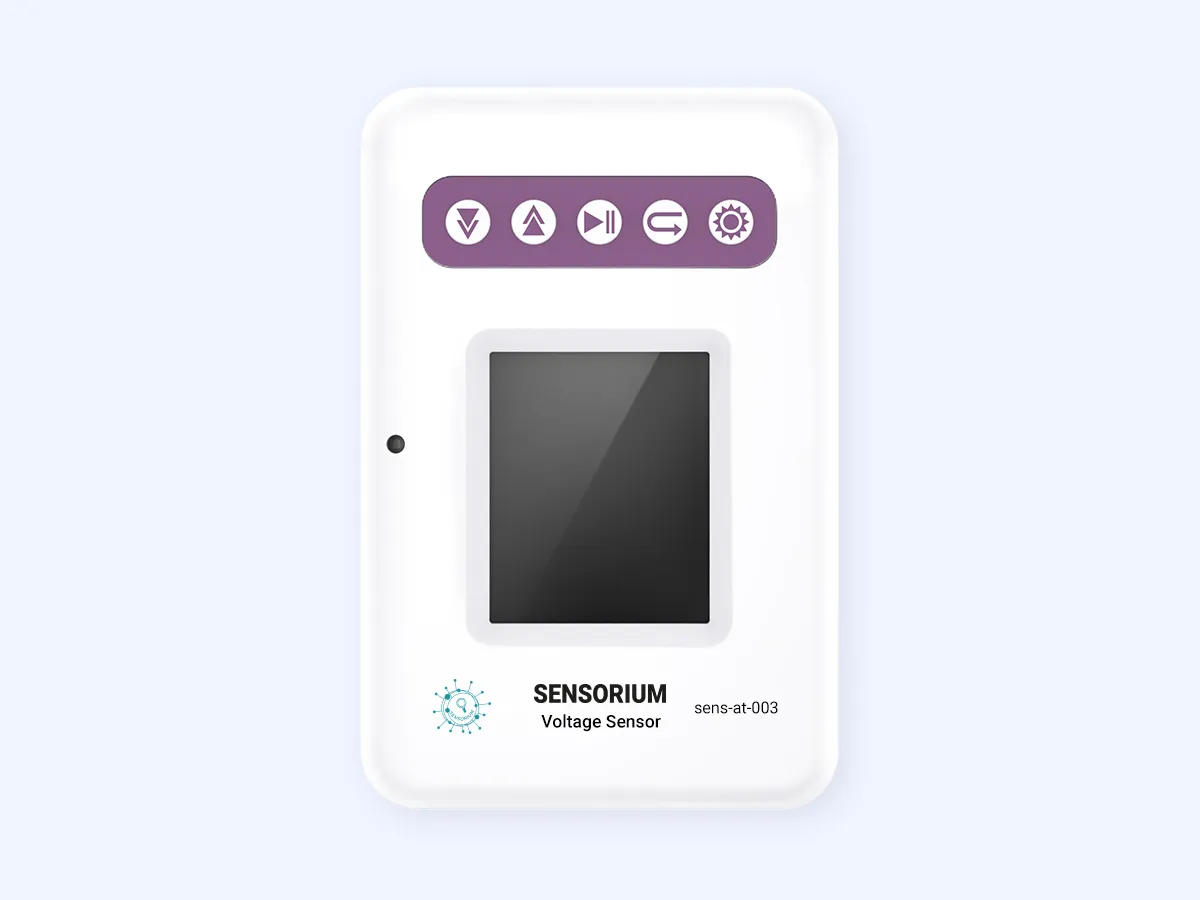

Wireless voltage sensor
Conventional voltage sensor designed solely for measuring DC voltage in educational circuits.
Explore Products
icon arrow right
ULabs
Sensorium Einstein
se-at-045

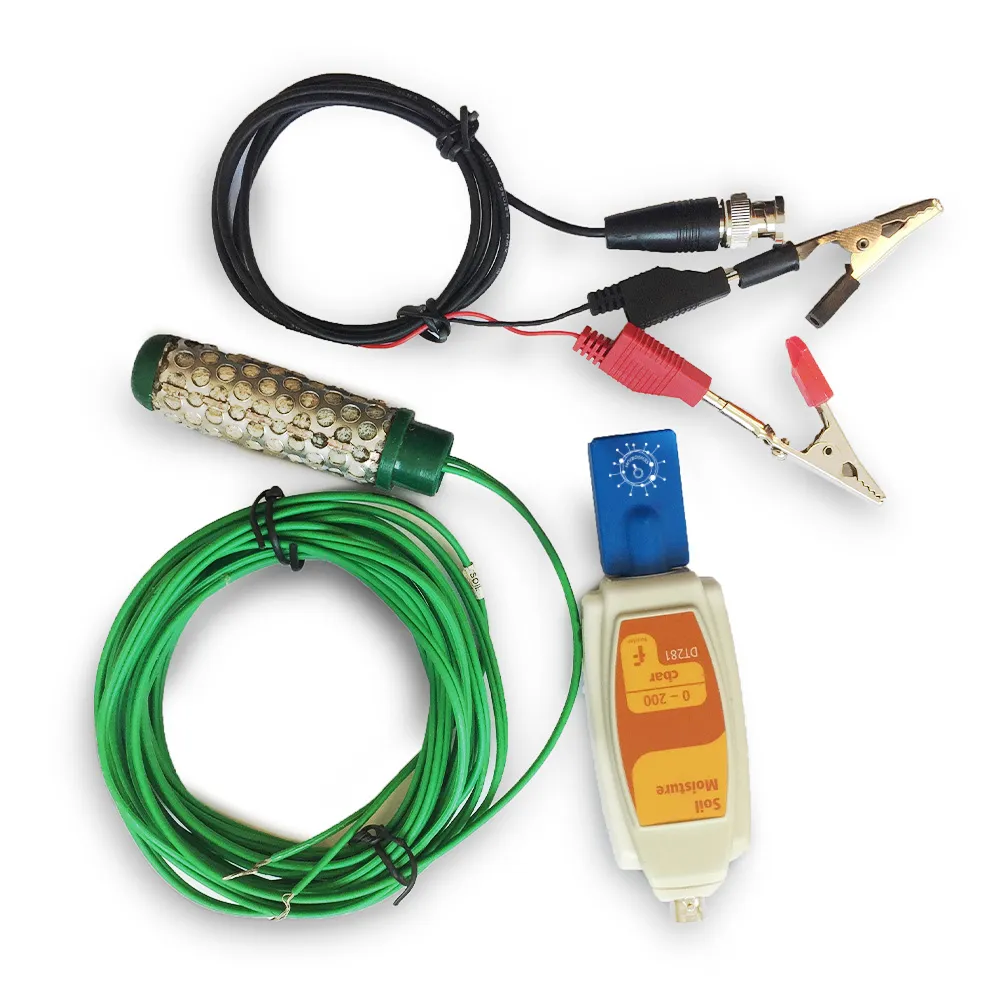

Soil Moisture Sensor
