Optics Student’s set with AI agent

• Optical bench with scale: 60 cm
• Lens focal lengths: 100 mm; 150 mm; 200 mm
• Diaphragm aperture diameter: 3 mm
• Screen size: 120 x 130 mm
• Light sources: light source, line laser, point laser
• Movable frame holders: 8 pcs
• Lens holder frames: 4 pcs
• Slits and diffraction gratings: 2 pcs each
• Digital learning materials: 70 academic hours
• Access licence for software and materials: 12 months
• Recommended age: from 10 years, under the supervision of a teacher

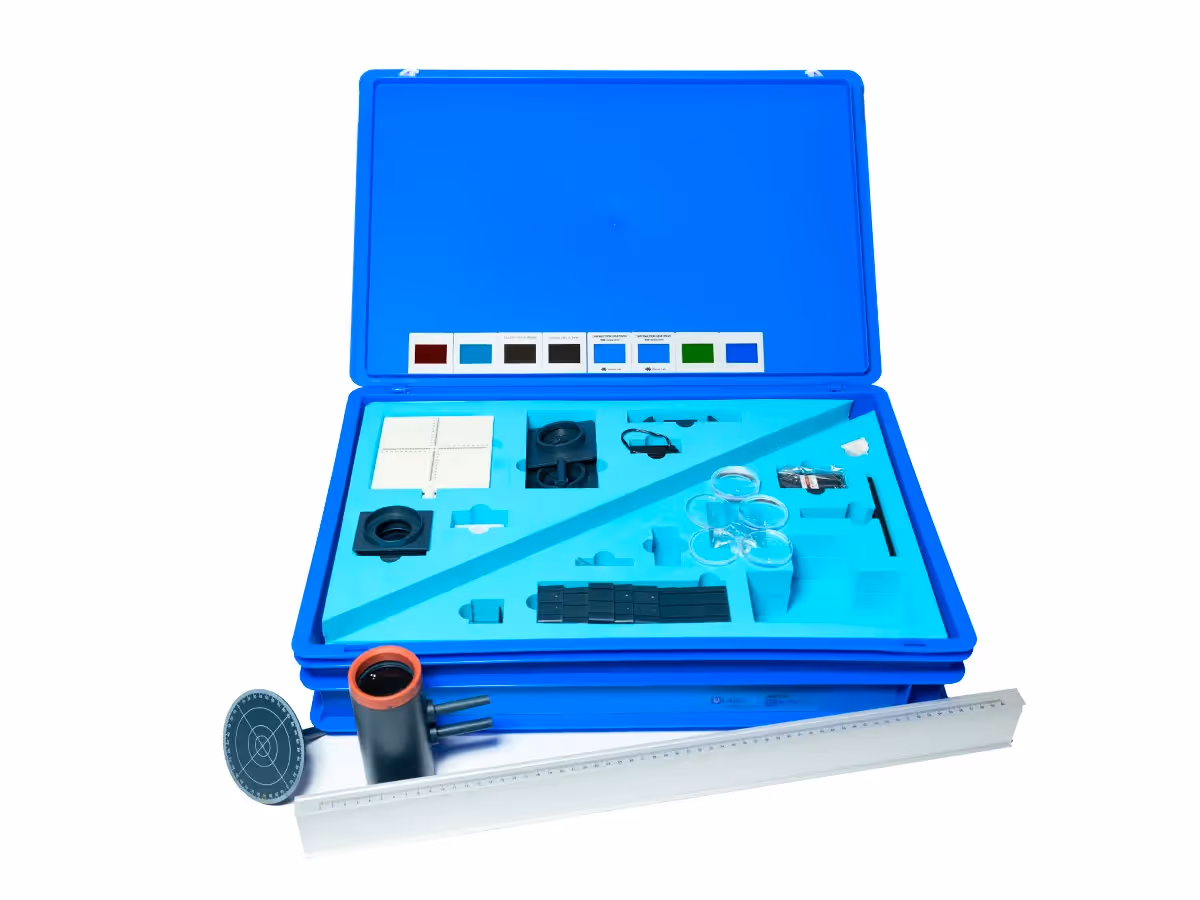

Kit Contents:

Bench and mounts

• Optical bench with scale, 60 cm — 1 pc
• Optical bench supports — 2 pcs
• Movable frame holders — 8 pcs
• Lens holder frames — 4 pcs
• Diffraction grating holder frames — 2 pcs

Light sources

• Light source for experiments with an extended object — 1 pc
• Line laser — 1 pc
• Point laser — 1 pc

Optical elements

• Lens set, F = 100 mm; F = 150 mm; F = 200 mm — 1 set
• Prism with stand — 1 pc
• Plate with the letter F — 1 pc
• Diaphragm, aperture d = 3 mm — 1 pc
• Mirror — 1 pc
• Screen, 120 x 130 mm — 1 pc
• Block (rectangular refracting body) — 1 pc
• Slits — 2 pcs

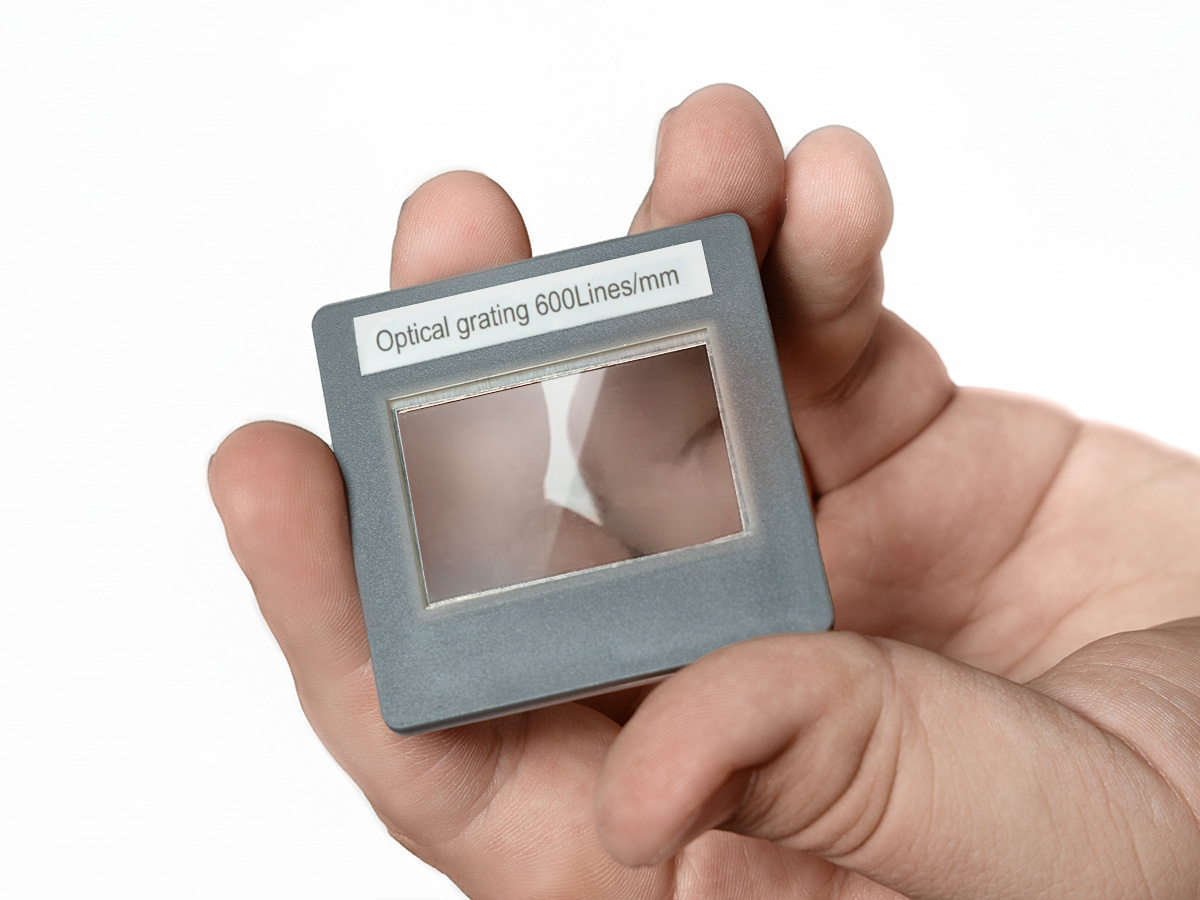

• Diffraction gratings — 2 pcs
• Colour filter set — 1 set

Storage

• Foam tray insert with cells for the optical elements — 1 pc
• Packaging box — 1 pc

Documentation and digital component

• Methodological guide for the kit — 1 pc
• Access to digital teaching materials in a learning management system, 70 academic hours, developed to the national curriculum of Ukraine — 1 licence
• Access to the built-in AI assistant of the learning management system — 1 licence

Experiments supported

• Geometrical optics: image formation in lenses, measuring focal length, camera obscura with the 3 mm diaphragm
• Instrument models: telescope (F = 200 mm objective and F = 100 mm eyepiece), microscope from two short-focus lenses
• Reflection and refraction: angle of incidence and reflection on the mirror, ray displacement in the block, refraction and total internal reflection in the prism, dispersion of white light into a spectrum
• Wave phenomena: diffraction on the gratings and on a slit with the point laser, rectilinear propagation of light through two slits
• Colour: transmission and absorption of light by single and stacked colour filters

Product passport: pcb-ulabs-08 (PDF)

The kit gives access to an AI assistant embedded in the learning management system. It is built on retrieval-augmented generation and forms its answers from a localised knowledge base aligned with the national curriculum of Ukraine.

AI Assistant Functions

• Task selection: automated selection of research tasks and experiments matching the topic of the lesson
• Methodological support: step-by-step description of the procedure for conducting experimental research
• Error analysis: identification of typical student errors and personalised recommendations for correcting them
• Adaptive difficulty: adaptation of task difficulty to different levels of student preparation
• Reports and conclusions: support in compiling reports on research results and in structuring the conclusions drawn from experiments
• Knowledge base: operation on a localised knowledge base aligned with the national curriculum of Ukraine
• Licence: right of access to the software and materials valid for 12 months
• Language: content, interface and learning materials in Ukrainian
