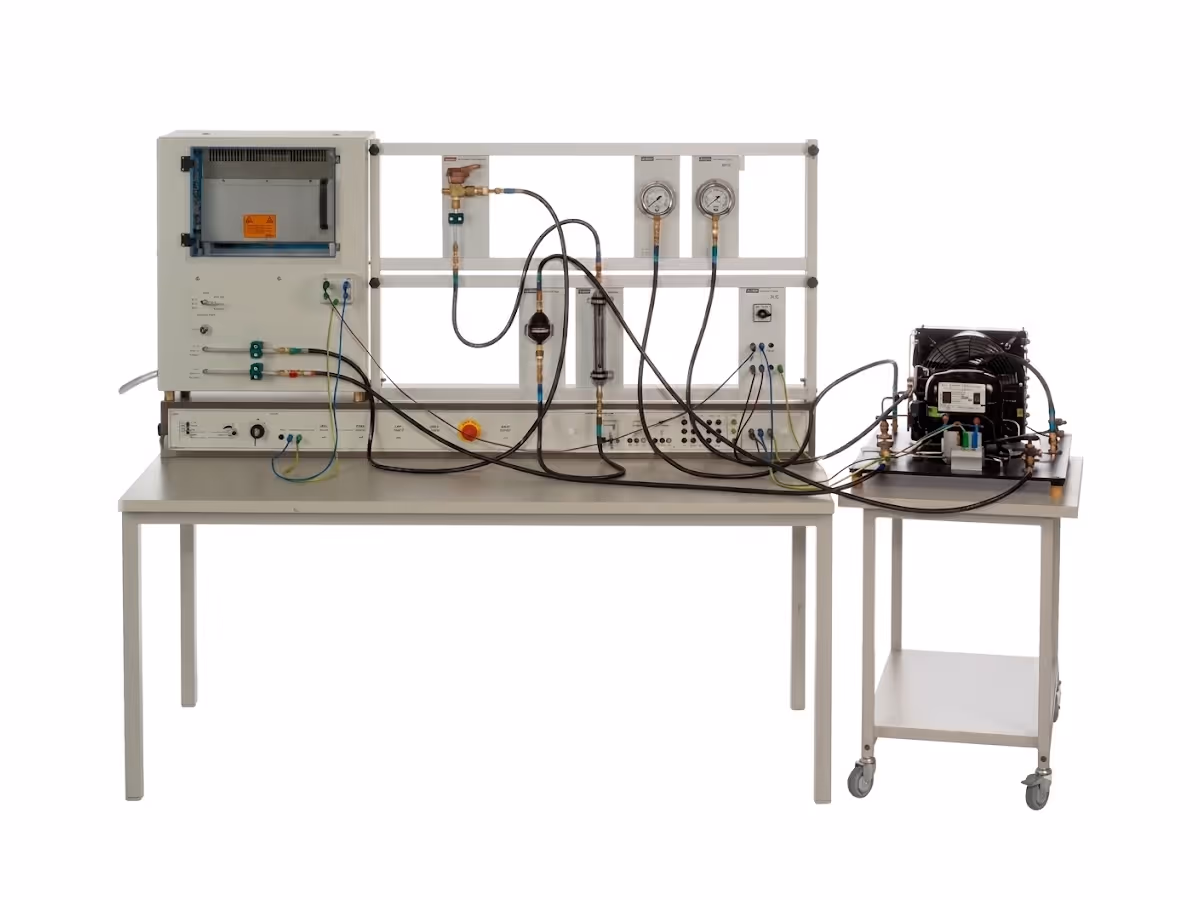

With this training system practical experiments relating to the operation of a refrigeration system can be implemented by dealing with differently configured compression refrigeration circuits.
Base unit for the refrigeration training system
Condensing unit, consisting of hermetic compressor, condenser, receiver, pressure switches and shut-off valves
Insulated refrigeration chamber with integrated evaporator, electric defrost heater and condensate drip tray
Refrigeration chamber, condensing unit and power supply equipped with shock-proof lab jacks
Air-cooled condensing unit
Evaporator with fan
230V, 50Hz, 1 phase
The components used are common in refrigeration and therefore closely related to practice.
The base unit includes the main components of a refrigeration circuit: a condensing unit with compressor, condenser and receiver and a refrigeration chamber with integrated evaporator, fan for forced ventilation and an electric defrost heater. A pressure switch protects the compressor against excessive pressure.
The refrigerant flow can be modified via shut-off valves.
