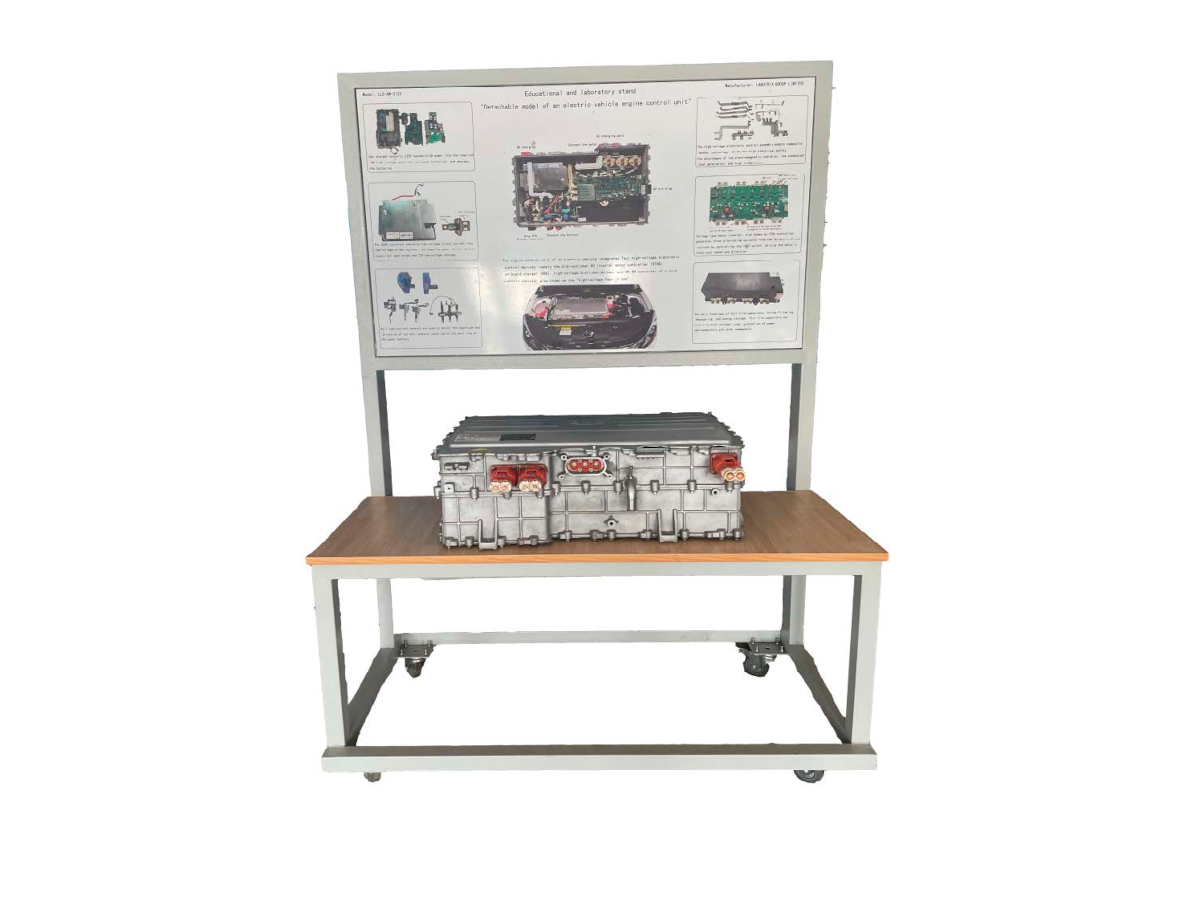

Laboratory Stand "Architecture and Internal Structure of The Traction Motor Control Inverter and Associated Electronics (cutaway model)"

This stand is specifically tailored to offer visibility into the design of the power converter (inverter) unit of an electric vehicle, enabling students to study its components and internal workings in detail.

Main Features

● Real and Operational Teaching System Provides a hands-on approach to understanding hardware principles of automotive engine ECUs.

● Detachable Design Offers visual access to the components and parts located inside the power converter (inverter) unit of the electric vehicle, making it easier for students to grasp the internal structure and functionality.

● Original Connectors Retained Ensures compatibility with real-world systems by retaining the original connectors for wiring connections.

● Functional Diagram Display The front panel of the stand features a detailed functional diagram of the electric vehicle's power electronics, aiding in visual learning and analysis.

● Mobile Design Equipped with wheels for easy movement, ensuring flexibility in classroom and laboratory settings.

Conclusion

The Educational and Laboratory Stand "Architecture and Internal Structure of The Traction Motor Control Inverter and Associated Electronics (cutaway model)" is an advanced training platform designed for in-depth study of EV power electronics. Its combination of real-world components, functional visualization, and mobility makes it an essential tool for hands-on learning in automotive engineering and electrical systems.
