Digital measuring computer complex for physics teacher

Digital Measurement Computer System for Physics Teachers

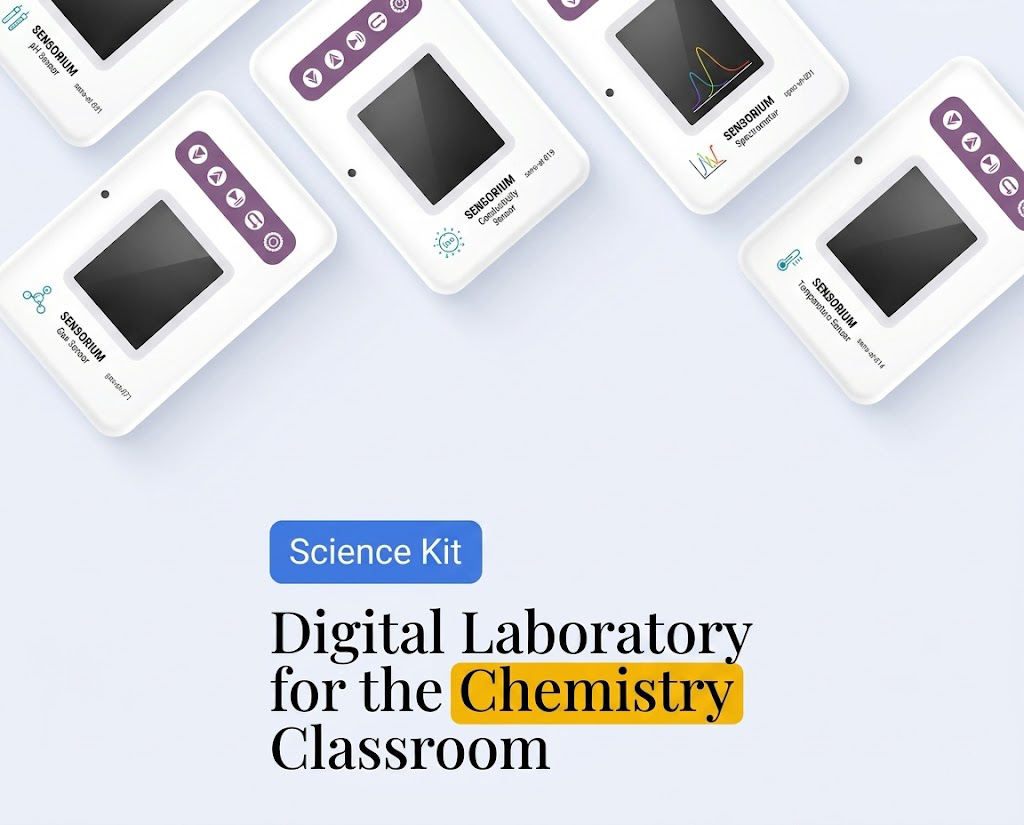

The wireless sensors are equipped with a 1.8-inch color LCD screen that instantly displays measurement results for conducting experiments.

The wireless sensors operate autonomously without additional devices or wires, specifically without a data logger or other analog-to-digital converter to transmit measurement results to a computer or tablet.

The digital course includes a separate tool utilizing artificial intelligence technologies, specifically with capabilities for applying generative artificial intelligence.

The digital lab is a modern educational solution that combines software, multimedia content, and artificial intelligence elements to support inclusive and engaging learning.

– voltage sensor – 2 pcs;

• Range: from -25 V to 25 V, resolution: 0.01 V

– current sensor – 2 pcs;

Technical specifications

• Range: from -3A to +3A
• Resolution: 0.01 A

– Temperature sensor – 2 pcs;

• Measurement range: from -50°C to +200°C
• Resolution: 0.01°C

– temperature sensor (thermocouple) – 1 pc;

• Range: from -200°C to 1200°C; Resolution: ±0.5°C.

– pressure sensor – 1 pc;

• Range: 0–700 kPa
• Resolution: 0.1 kPa

– Microphone sensor – 1 (3 if needed);

• Range: 20 Hz–20,000 Hz / 20 dB–120 dB
• Resolution: 0.1 dB

– light sensor – 2 pcs;

• Measurement range: 0–8,000 lux; Resolution: 1 lux

– magnetic field sensor – 1 pc;

• Range: from -84 mT to +84 mT
• Resolution: 0.01 mT

– photoelectric gate – 2 pcs;

• Range: 0–10 s, Resolution: 0.1 ms

– force sensor – 2 pcs;

• Range: from -50 N to +50 N
• Resolution: 0.01 N

– humidity sensor – 1 pc;

• Range: 0%–100%; Resolution: 0.1%

– ultraviolet radiation sensor – 1 pc;

• Measurement intensity: 0–11 UV Index (1UVI)
• Detection wavelength: 200–370 nm

– Ambient temperature sensor – 1 pc.

• Measurement range: from -30°C to +50°C

Digital educational materials

• Digital educational materials developed in accordance with the national curriculum are provided. The educational materials are hosted on the LMS platform and include:

- structured modules based on an inquiry-based approach in physics, biology, chemistry, and STEM

- experiment scenarios

- step-by-step lab instructions

- video demonstrations of experiments

- interactive exercises

All modules are fully compatible with the purchased equipment, ensuring a direct link between “equipment → methodology → learning outcome.”

Integrated AI Agent (RAG-based)

• Access is provided to an integrated artificial intelligence agent powered by Retrieval-Augmented Generation (RAG) technology. The AI agent performs the following functions:

- Selection of research tasks and experiments based on the lesson topic

- explaining the step-by-step procedure for conducting an experiment

- analyzing common mistakes made by students and providing recommendations

- adapting tasks to different levels of student proficiency

- assisting in the preparation of research reports and experiment summaries

- operating on a localized knowledge base aligned with the national curriculum
