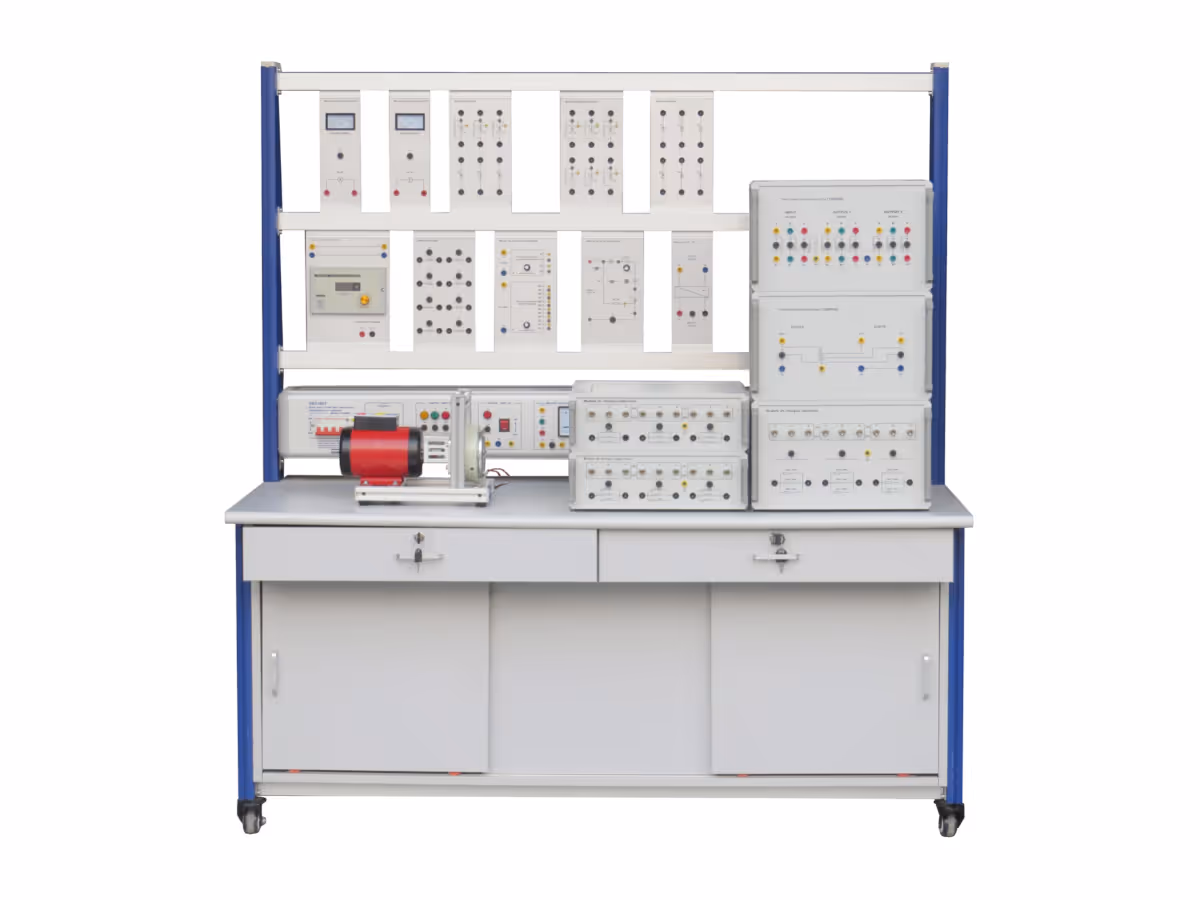

Laboratory Stand "Voltage Stabilization in Single- and Three-Phase Networks"

Character parameter

Input power: three phase, five wire, 380V

Work condition:

Environment temperature: -10°C~+40°C

Relative humidity: <85%(25°C)

Feature

Training bench with aluminum column frame structure, the power supply built-in integrated installation, safe and convenient to use, is not easy to damage.

Unit circuit hanging box configuration are complete, combination use, complete variety of critiquing the training content.

It can be set for an experiment subjects related units hang flexible increase or decrease in the box, in order to meet different user requirements.

Training platform has a good safety protection system.

Power control panel

The power control panel using aluminum alloy profile panel, enclosed body structure, and placed at the bottom of a connection as one.

Training workbench

Training workbench use aluminum structure. There are universal 4 wheels at the bottom of workbench, there are 2 breakers on wheel. The trainer can be moved or stop convenient . The workbench panel thick is 25mm high density substrate , there is high temperature high pressure anti-fire treatment process. It equip with three guide rail type drawer, 2 push and plug cabinet. The structure is sound and reliable, outlook is beautiful.

Power box

Three phases, five wires power input, it has been tested by leakage breaker control, it has emergency stop button, you can cut off electricity when emergency.

Control panel has two point type voltage meter, one current meter, one power meter, one non power meter.

It equipped with indicator, Europe power plug output, safety output sockets.

Inner AC 220V current output, DC 220V wound power, DC 0-220V continuous adjustable DC armature power, with short circuit protection function.

The bench allow the study of:

Study of single phase non commanded stabilization

1 diode simple alternation stabilization

Double alternation with transformer with middle point and 2 diodes

Double alternation with 4 diodes bridge, PD2

Study of commanded single phase stabilizer

1 thyristor simple alternation stabilization

Double alternation with transformer with middle point and 2 thyristors

Double alternation with 4 thyristor

Study of 3ph non commanded thyristor

Simple alternation stabilization by 3 diodes common cathode

Simple alternation stabilization by 3 diodes common anode

Double alternation stabilization by 6 diodes

Study of 3ph commanded stabilizer

Simple alternation stabilization by 3 thyristors common cathode

Simple alternation stabilization by 3 thyristors common anode

Double alternation stabilization by 6 thyristors

Study of single phase mixed stabilizers

Mixed double alternation and symmetrical with 2 diodes and 2 thyristors

Mixed double alternation and asymmetrical with 2 diodes and 2 thyristors

Study of 3 phase mixed stabilizers

Mixed double alternation and symmetrical with 3 diodes and 3 thyristors

Mixed double alternation and asymmetrical with 3 diodes and 3 thyristors

The bench is delivered totally equipped with:

The bench must be delivered totally equipped and functional with universal module containing the power components (diodes and thyristors) and protection circuits against overloads and short circuits.

This module serve to study different stabilizers cabling simply by choosing the corresponding mask necessary power supplies (transformer with single phase outputs and 3 phase outputs with at least 2 voltage levels) thyristors command unit (for commanded stabilization).

Shunts for current measuring

Necessary loads: resistive, inductive, capacitive which are variable and with DC motor by shunt excitation. All loads have the same power as the bench.

All necessary connection accessories
